DGD-210 Automatic Premade Pouch Packing Machine
Introduction:
DGD-210 Automatic pre-made pouch packaging machine contains pouch- take unit, pouch open unit, inflatable unit, filling unit, top-sealing unit, pitting seal unit and cold seal unit, etc.
Features
This equipment is mainly used in all kinds of pre-made pouches, the finished product with perfect outlook, less films consumable, and fast changeover. Mainly electric opponents are France Brand, which with good compatibility. Overall protection, Built-in dust removal pipes creates good dust effect.
Technical Parameters
Main Technical Parameter (If you are interested, please contact us send you the detailed plan) | |
Speed: | 50 pouches per min (100ml water as the medium) |
Pouch width: | 90- 205mm |
Pouch Height: | 140 -280mm |
Packing volumes: | Max. 400 g(varies as per material proportion) |
Tolerance: | ±1% |
Power Source: | three phase, AC 380V, 50HZ |
Power: | 4.5 KW |
Weight: | about 1800Kg |
External Dimension: | 2700mm* 970mm* 1470mm (L×W×H) |

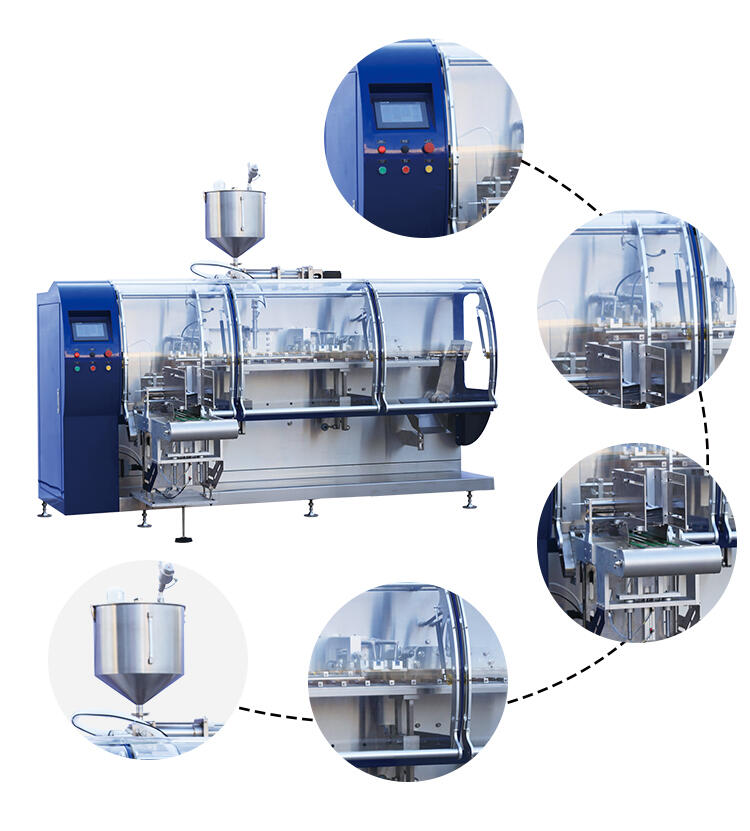

Product Display
