Film Blowing Machine
HDPE single layer film bowing machine /garbage bag film extruder for pallet or beverages packaging use for stand-up pouch, soft tube (tooth paste tube), beverage pack, lamination film, protection film, stretch film, stretch hood heat shrinking film, medicine and food packing.
Model | SD-55 | SD-60 | SD-65 | SD-80 |
Suitable Material | HDPE / LDPE / LLDPE | |||
Film Width | 800 mm | 1000 mm | 1200 mm | 1500 mm |
Film Thickness | 0.08 - 0.15 mm | 0.08 - 0.15 mm | 0.08 - 0.15 mm | 0.02 - 0.2 mm |
Max. Output | 55 - 60kg / h | 75 - 80kg / h | 130kg / h | |
Extruder | ||||
Screw Diameter | 55mm | 60mm | 65mm | 80mm |
Screw L/D | 30:1 | |||
Barrel Cooling | Water Cooling | |||
Main Motor Power | 22kw | 30kw | 37kw | 45kw |
Total Power | 48kw | 60kw | 55kw | 120kw |
Die Head | ||||
Die Head Type | Single Layer | |||
Air Ring | Double lips air ring | |||
Traction Roller Width | 900 mm | 1100 mm | 1300 mm | 1600 mm |
Effective Width | 800 mm | 1000 mm | 1200 mm | 1500 mm |
Traction Speed | 100 m/min | 100 m/min | 100 m/min | 80 m/min |
Winding Unit | ||||
Wingding Type | Friction type automatic single / double winder | |||
Wingding Speed | 100 m/min | 100 m/min | 80 m/min | 60 m/min |
Voltage | 380V, 50Hz | |||
Dimension | 5000 * 2500 * 5000 mm | 5000 * 2500 * 6500 mm | 5000 * 2600 * 7000 mm | 7500 * 3200 * 8500 mm |
Weight | 4 T | 5 T | 5.5 T | 7 T |

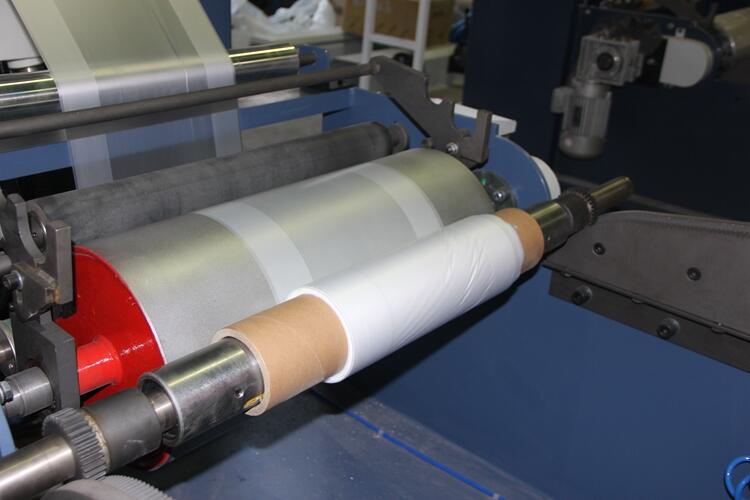

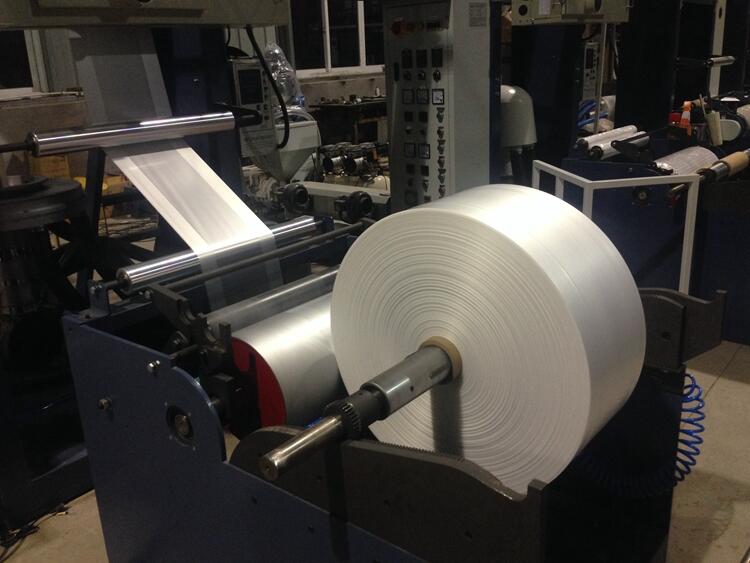

Product Images
