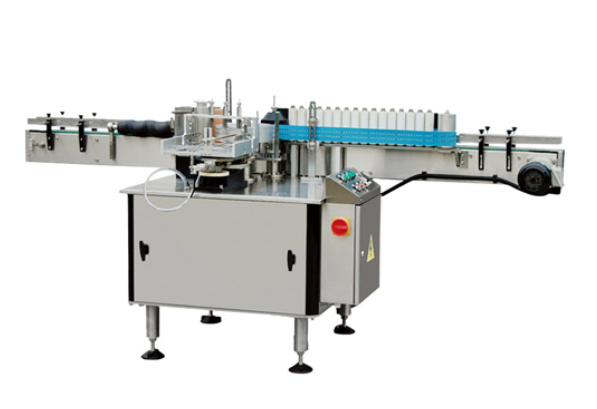

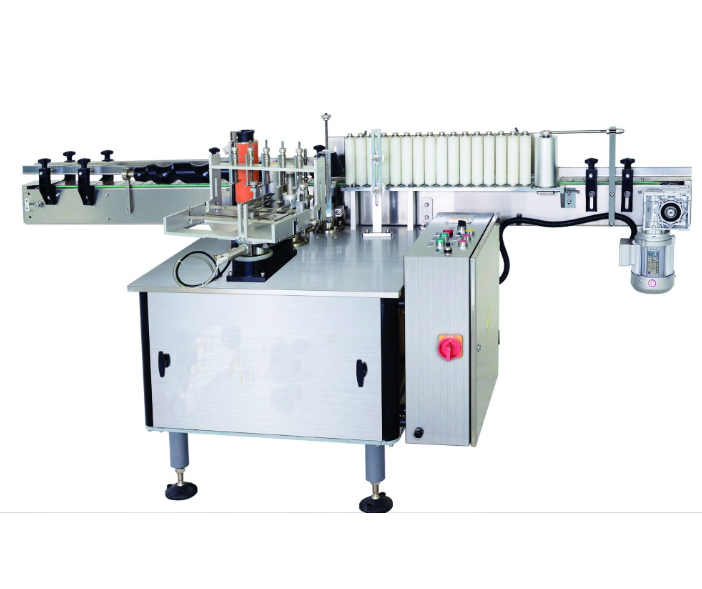

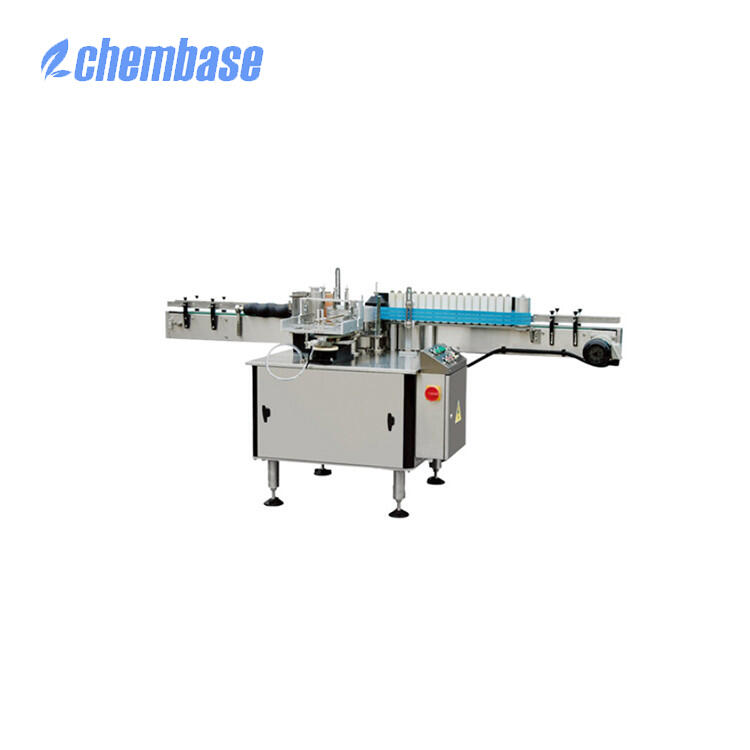

CBB-100D Fully Automatic Digital Bottle Labeling Machine
CBB-100D Automatic digital label printing machineis suitable for the continue labeling of round bottles. For example, round glass bottles, plastic bottles and PET bottles. It can automatically take the label, glue and paste. Under the inspection of the sensor, it can realize 'No bottle, no label. No label, no glue.

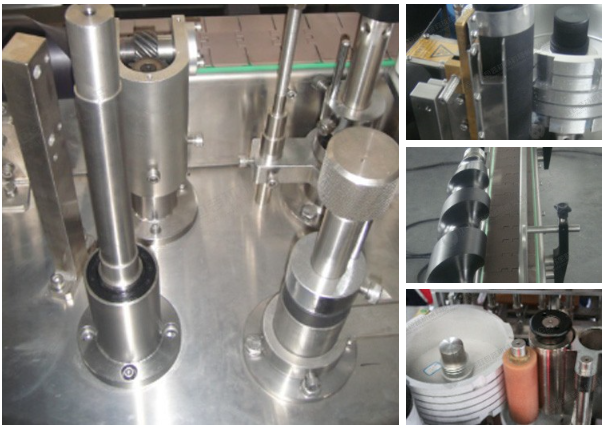

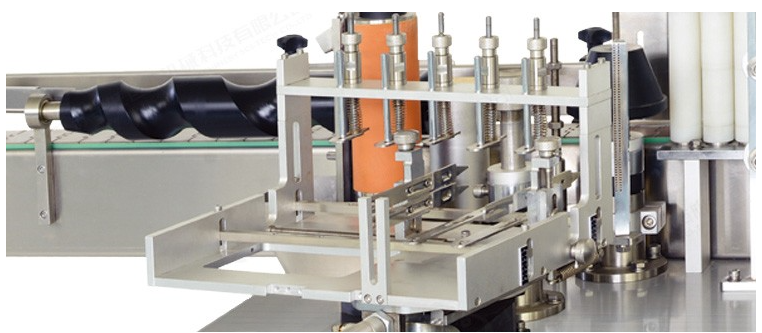

1. Its special designed glue holder which makes the addtional of glue easier.
2. A sensor is installed at the bottle-separating screw which can realize no bottle, no label.
3.An air outlet is added in the cabinet which can reduce the heat in the process of production. This can prolong the lifetime of the machine.
4. Simple and reliable structure design makes the changing of specifications easier.
Technical Parameters of Automatic Labeling Machine:
Main Technical Parameters (If you are interested in it, please contact us now) | |
Labeling precision | ±1mm |
Capacity | ≤100 bottles/min |
Applicable Bottle | Φ30-95mm |
Label Height | 40-150mm |
Label Length | 50-280mm |
Power Source | 380V,50HZ |
Power | 1.2 KW |
Weight | About 700Kg |
External dimension | 2500×1000×1200mm(L×W×H) |
