AUTOMATIC LIQUID FILLING MACHINE

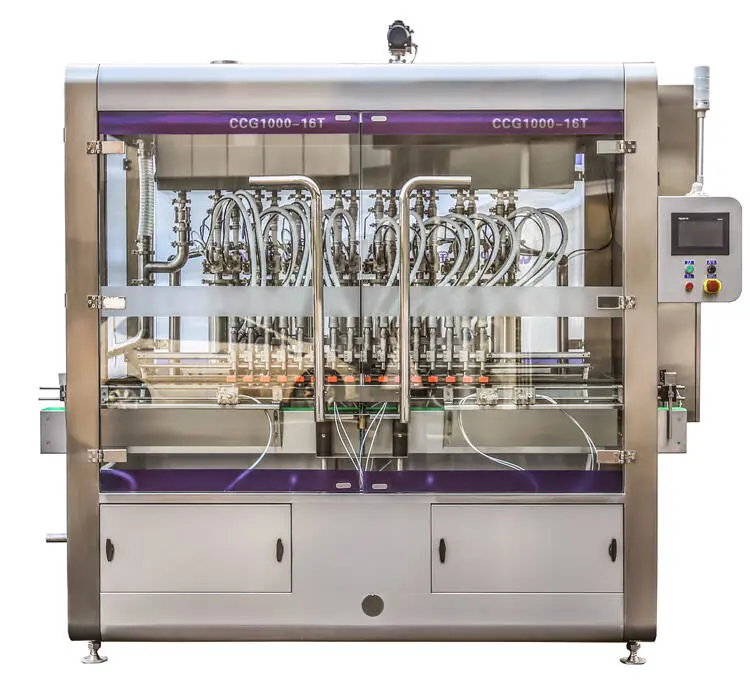

CCG1000-16TS Automatic Liquid Packaging Machine

Introduction:

CCG1000-16TS Automatic High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is suitable for filling liquid into bottles. The whole machine is linear structure and driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier.

Main Technical Parameters:

1 Capacity: 5500 Bottles/hour (100ml) 3000 Bottles/hour (1000ml)

2 Applicable Bottle Size: Round Bottle: 40－95mm, Height: 80－230mm

Flat/Square Bottle: L: 40-95mm, W: 40-95mm, H: 80-230mm

3 Filling Volume: 50-1000ml

4 Filling Precision: (100ml) ±1g, (1000ml) ±3g

5 Air Pressure: 0.6-0.8MPA

6 Power Source: 380V, 50HZ

7 Power: 2.2KW

8 External Dimension: 2435×1253×2250mm (L*W*H)

9 Weight: 1100KG

Features:

1). This machine operates easily, with compact structure, perfect control system and high level of automation.

2). The filling process of different types of bottles can be reached

3). The parts contacting with product is made of quality stainless steel, anti-corrosive, and easy to clean.

4). The liquid level is precise and no waste is to increase.

5). It can ensure the protection of safety of the operator and equipment.

6). The operating system bears the function of production speed control,.

7). The electric equipment and pneumatic parts are of brand name of the world.

Technical Parameters of Filling Machine:

NOTE:The BPH is bottles per hour, The DPH is drums per hour, The BPM is bottles per min.

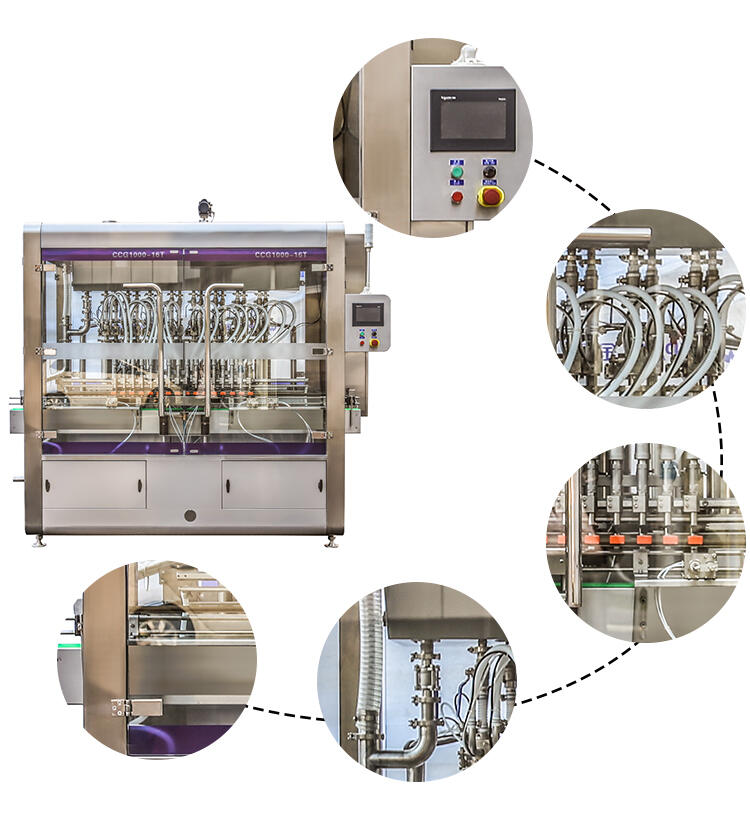

Product Display
