LP-200B Automatic Bottle Unscrambler

Introduction

LP-200B Automatic Bottle Unscrambler is making up with the bottle elevator, unscrambling rotary plate, bottle rejecting devices, unscrambling and electrical control cabinet. It can arrange the disordered empty plastic bottles into good order. The machine with the features of compact structure, simple operation, mature technology and stable running and operation. The bottle unscramble is widely used in the agrochemical industry, such as BASF, SYNGENTA, NPS, FMC, ROTAM and other companies.

Main Technical Parameters:

1 Unscrambling Speed: 100ml: 10000 Bottles/hour, 500ml: 7200 Bottles/hour

2 Applicable Bottle Size: Φ45－90mm, bottle width: 45-90mm

3 Applicable Bottle Height: 80-240mm

4 Air Pressure: 0.5～0.7 MPA

5 Power Source: ～220V, 50HZ

6 Power: 2.07KW

7 Bottle Unscrambler External Dimension: 2550×1450×1450mm (L×W×H)

8 Weight: about 670Kg

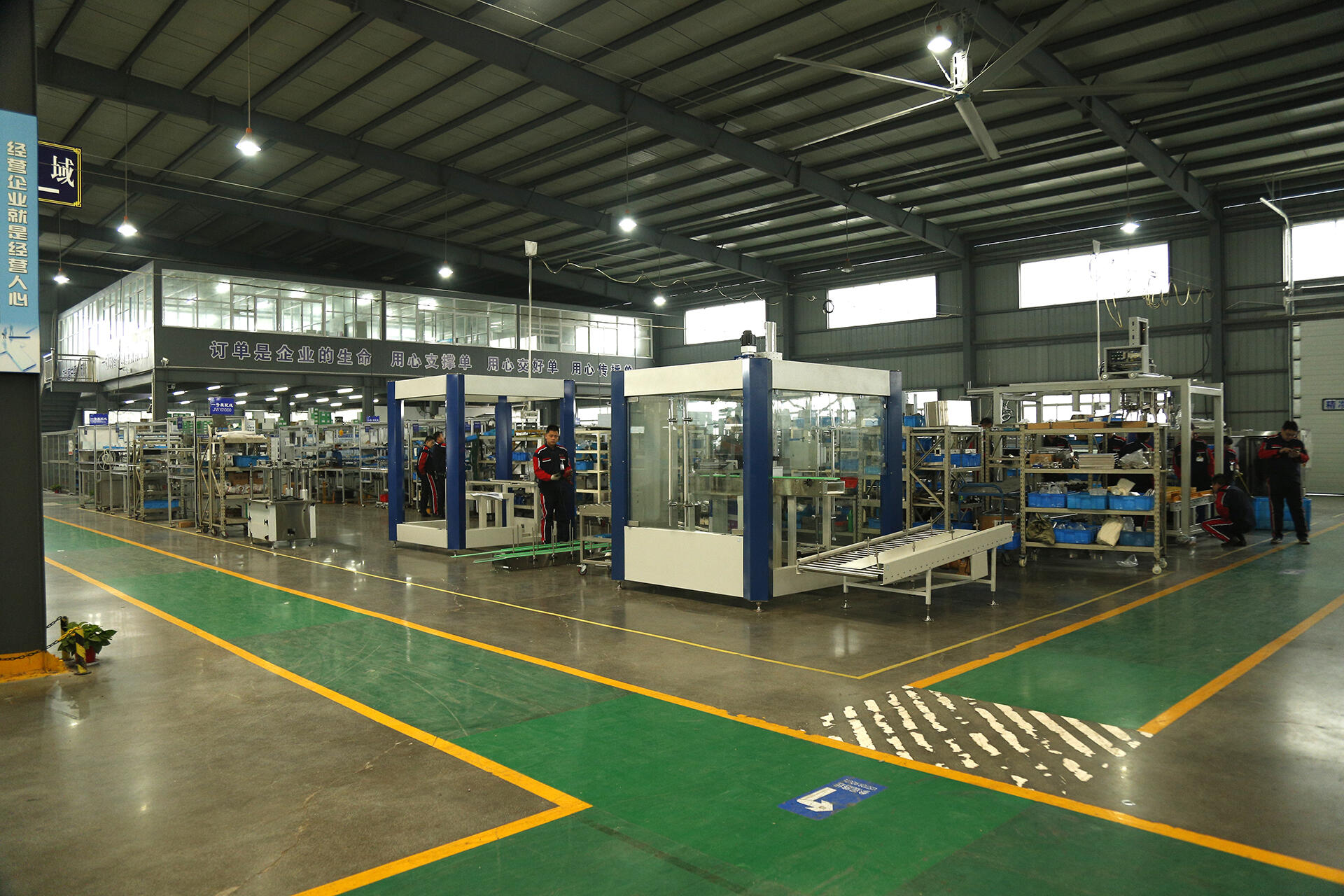

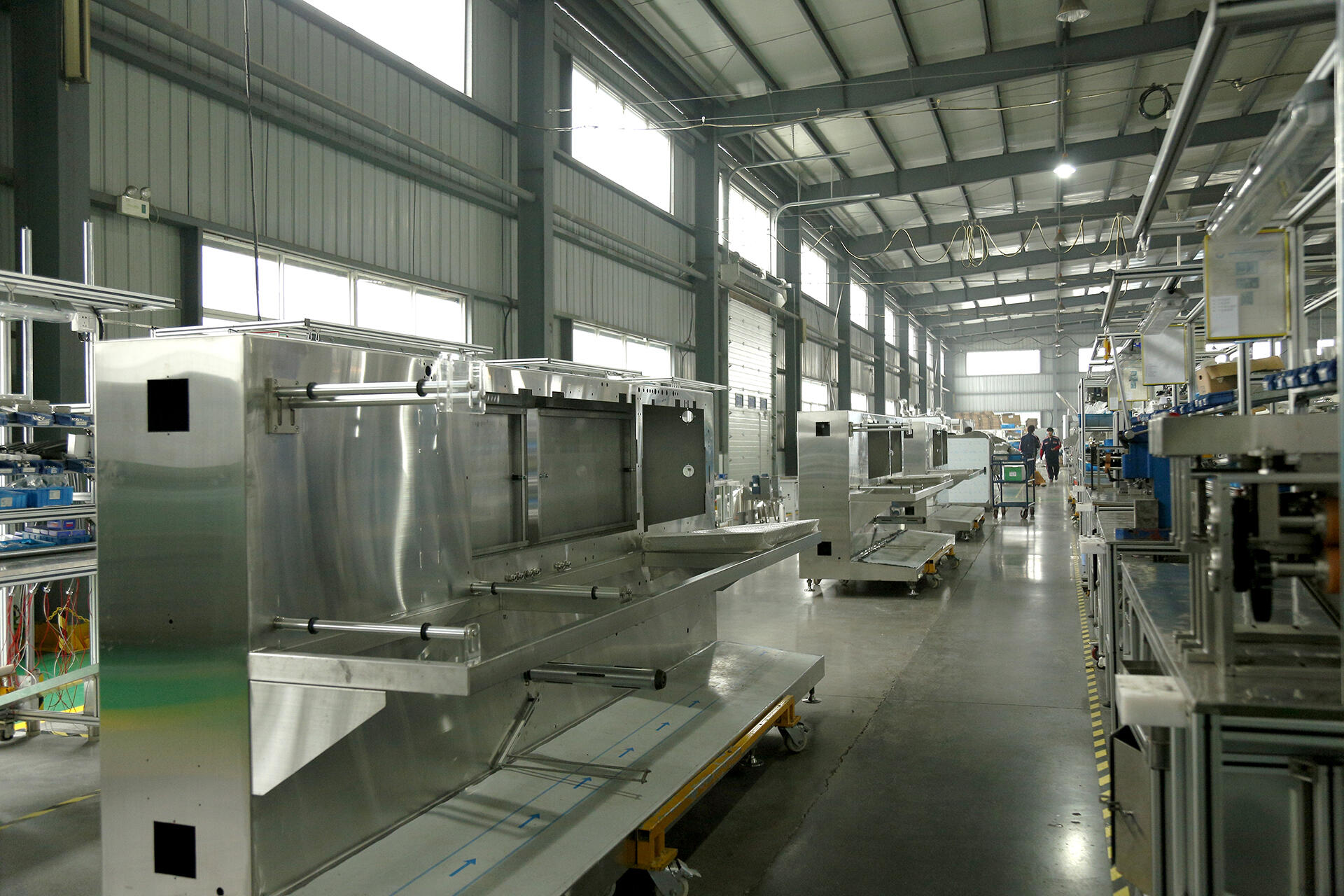

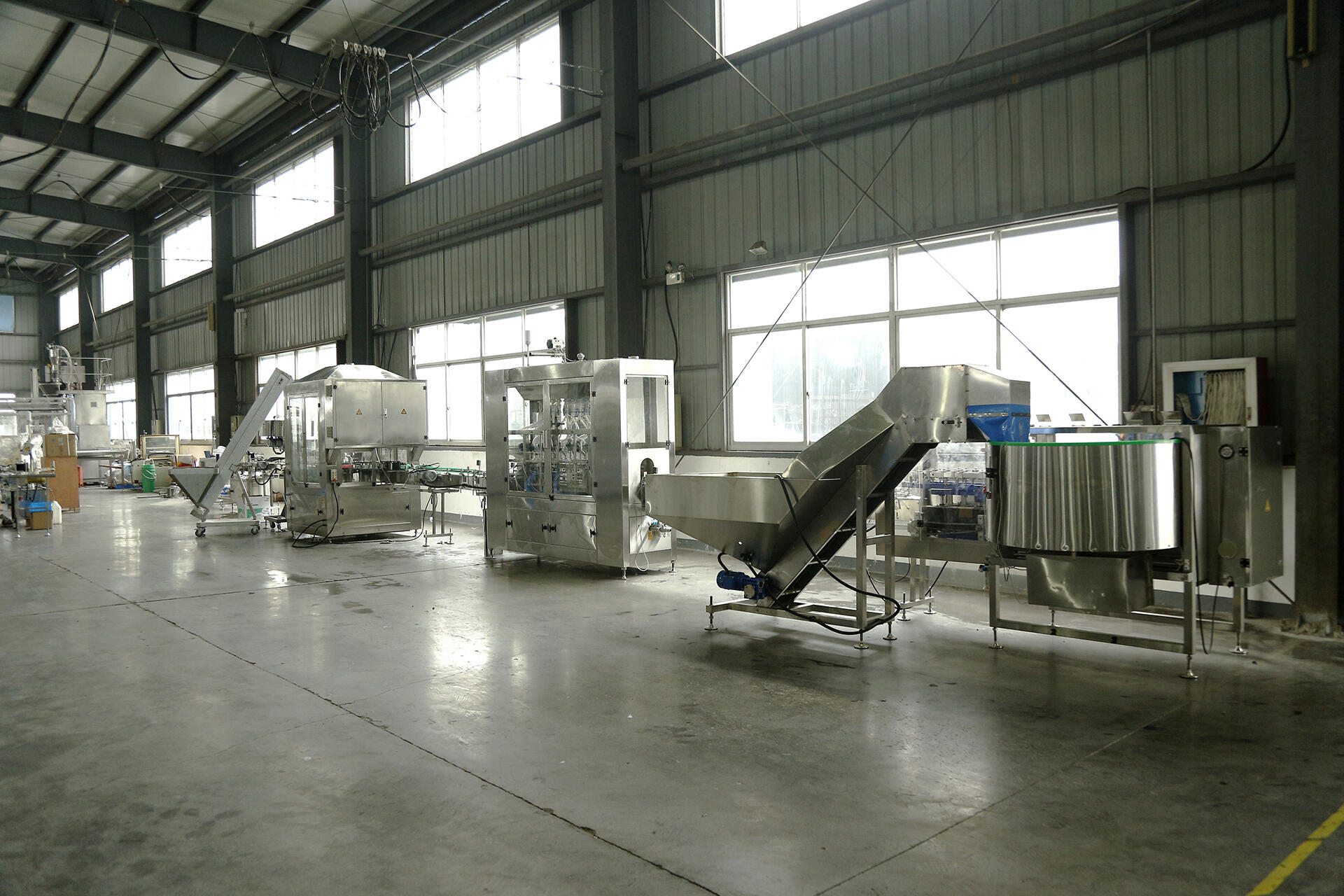

Product Display
