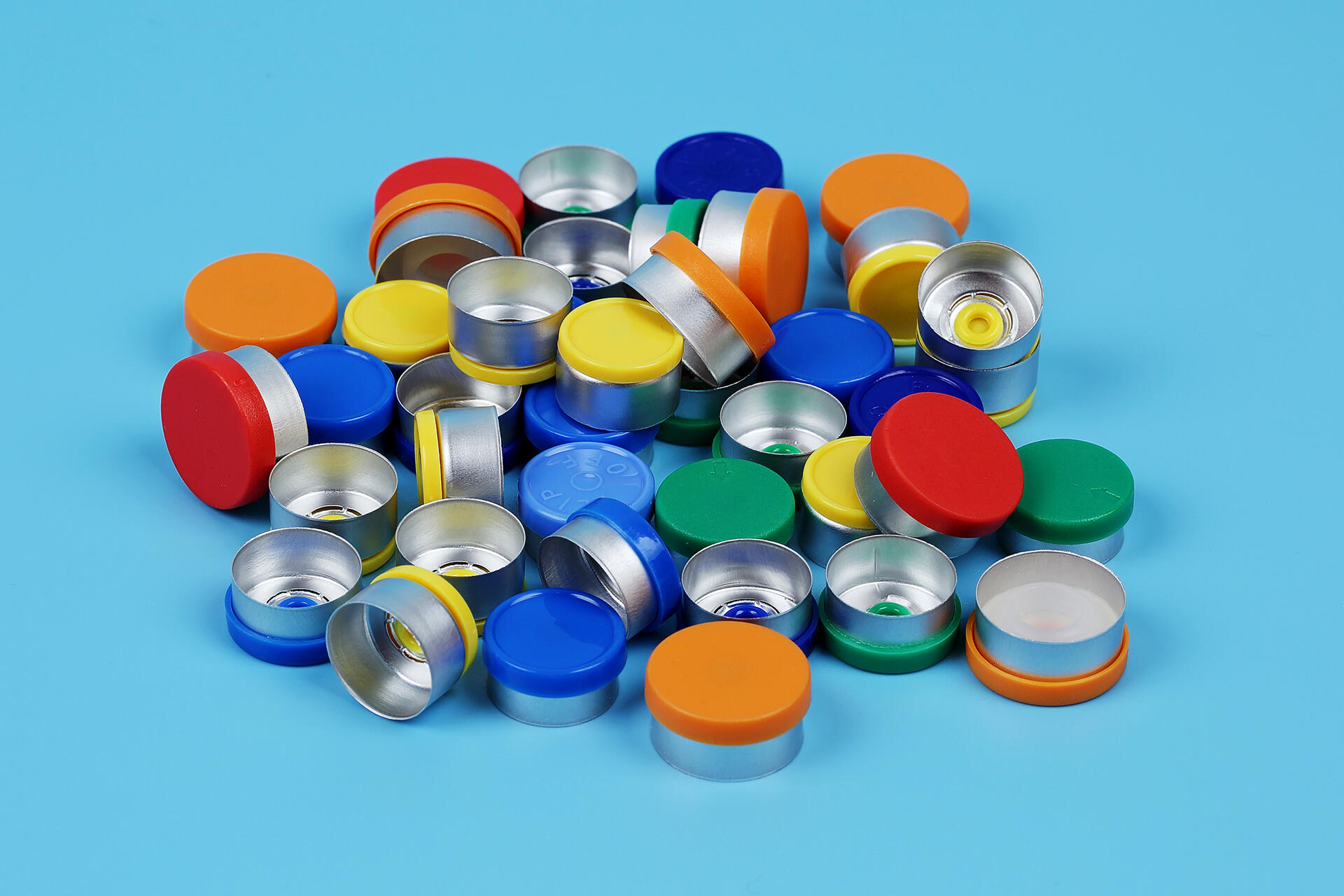

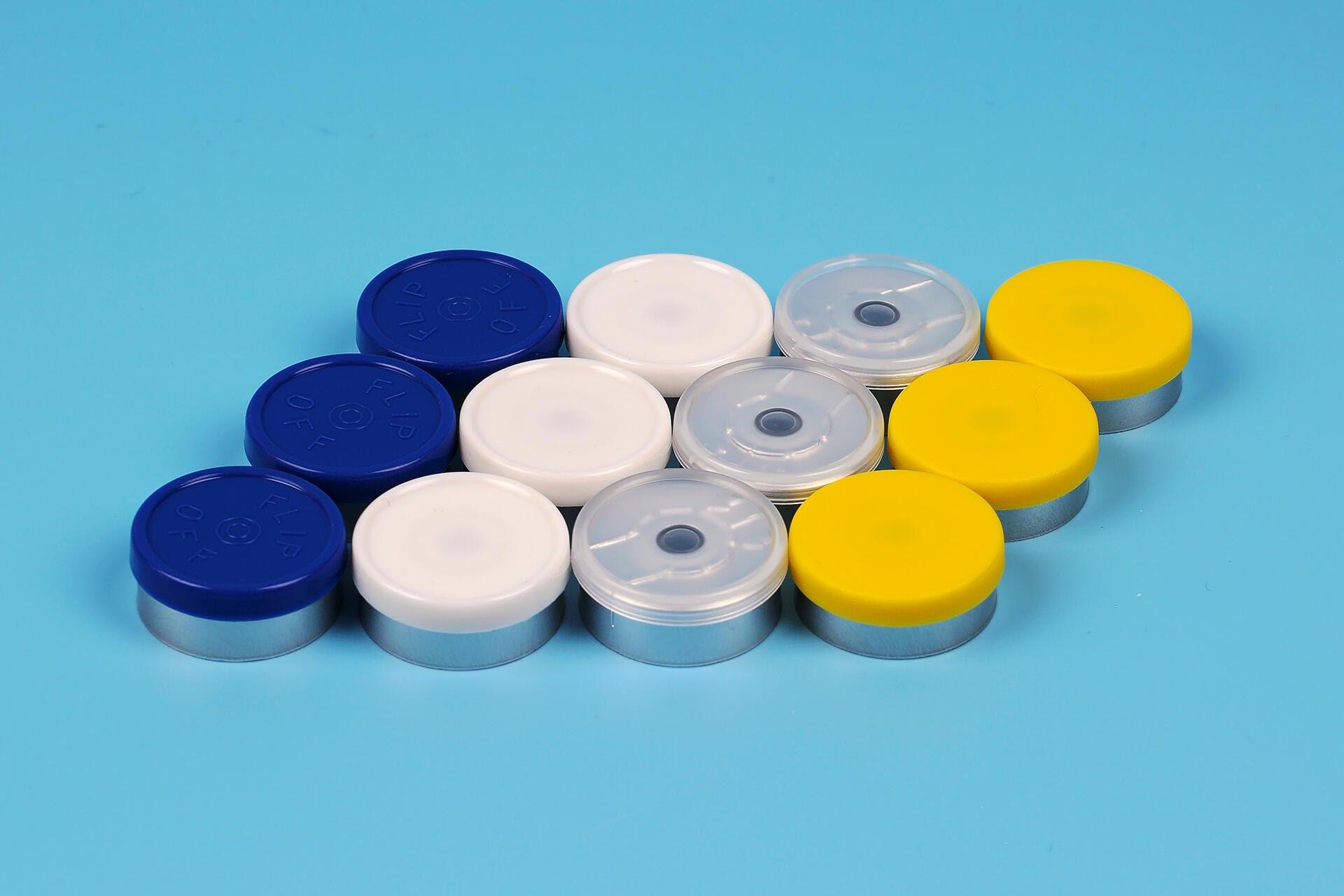

Aluminium Flip Off Seals :
1.Sterilization method: autoclave sterilizer, Ethylene Oxide(EO), we can supply sterile caps
2.Temperature resistance of plastic part: 135 degree centigrade
3.Temperature resistance of aluminum part coating: 180 degree centigrade
4.Aluminum part material: 8011, H16 with coating
5.Workshop: 100 class cleaning workshop meets the GMP standard
Product name | Aluminum Plastic Cap |
Material | Aluminium-Plastic |
Size | 13mm,20mm,28mm |
Color | White, golden, yellow,green and so on |
Type | Screw cap |
Customized Service | LOGO, color, package all can be customized |
Usage | Bottles, injection, infusion, oral solution or other packaging |
Normal Aluminum-plastic caps size:
Type | Plastic diameter | Inner diameter | plastic height | overall height | inner height | thickness |
13mm | 15±0.2 | 13.3±0.1 | 3.4±0.1 | 7.5±0.1 | 6.2±0.1 | 0.2 |
20mm | 22.1±0.1 | 20.2±0.1 | 3.4±0.1 | 8.9±0.1 | 7.5±0.1 | 0.2 |
28mm | 31±0.2 | 27.9±0.1 | 4.1±0.1 | 10.6±0.1 | 9.6±0.1 | 0.24 |
32mm | 35.4±0.2 | 32.2±0.1 | 5.8±0.1 | 13.8±0.3 | 12.4±0.1 | 0.24 |
